Used for: Manufacturing

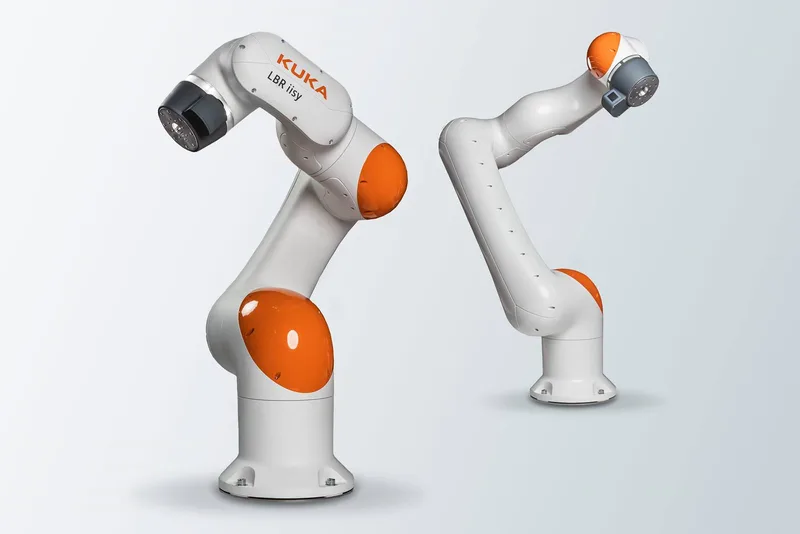

KUKA LBR iisy 6
KUKA AG · Starting from $26,310 · Get a current price · Simulate it first
Overview
KUKA's 6-axis industrial cobot: 6 kg rated payload, 1,300 mm reach, ±0.05 mm repeatability, run by the KR C5 micro-2 controller and the app-based iiQKA.OS2. Part of the LBR iisy family (3, 6, 8, 11 and 15 kg), suited to screwdriving, assembly, machine tending and HRC tasks.
Will the KUKA LBR iisy 6 do your task? Simulate it before you buy.
Four cobots on the same palletizing task, simulated before purchase.
We build your station in a simulator with the KUKA LBR iisy 6 and one or two alternatives, and send you video plus cycle time, parts per shift, reach and payload check, and a payback estimate. Scoping is free, and every project is quoted individually.
Software & 3D models
- URDF: not found
- MuJoCo: not found
- Isaac Sim (USD): not found
- Gazebo: not found
- CAD (STEP): not found
- SDK: yes
- ROS: not found
- ROS 2: not found
- RoboDK: not found
Checked 2026-10-17. Links are not published; we share them with clients.
Variants & pricing
| Variant | Status | Available | Current price |
|---|---|---|---|
| LBR iisy 6 R1300 | available | 2021 | $26,310 |
Get a price for the KUKA LBR iisy 6
We work from Hangzhou with Chinese and international robot makers. Tell us what you need and we check the current price, lead time and delivery to your country, and reply by email. Our fee comes from you, never from the seller.
A real person reads this. Reply within 2 business days. How we help buyers of robots from China →
Full price history
| Price | Date | Variant | Source | Note |
|---|---|---|---|---|
| $26,310 | 2026-10-16 | LBR iisy 6 R1300 | Unchained Robotics (DE reseller) | 'EUR 23,380.00 excl. VAT' with an add-to-cart button. USD at ECB reference rate 1.1253 of 2026-10-16, excl. VAT. |
| Contact | 2024-01-01 | LBR iisy 6 R1300 | KUKA / distributor estimates | Quote required. Community estimates ~$50,000–60,000. Also available in 3, 8, 11, 15 kg variants. |
Sensors
- Joint torque sensors
- Joint position encoders
- Integrated safety monitoring
Locomotion
fixed mount, ceiling mount, wall mount, any angle
Manipulation
Arms: 6 DOF · Hands: KUKA flange; compatible with standard and KUKA-certified end-effectors
Use cases
screwdriving, pick-and-place, machine tending, assembly, human-robot collaboration
Software
OS: iiQKA.OS2 (app-based KUKA OS) · SDK: ✓ · ROS: ✓ · Open source: ✗ · Languages: KRL, Python, C++
Key facts
- Reach: 1,300 mm. Pose repeatability: ±0.05 mm (ISO 9283). 6 axes.
- Rated payload 6 kg; up to 6.9 kg only with the centre of mass at 0 mm.
- Axis speeds with rated payload: A1-A3 200°/s, A4 230°/s, A5 260°/s, A6 430°/s.
- Weight approx. 46.3 kg; footprint 275 x 275 mm; IP54; 0-45 °C; floor, ceiling, wall or any-angle mounting.
- Family: LBR iisy 3 R760, 6 R1300, 8 R930, 11 R1300 (+CR cleanroom), 15 R930 (+CR).
- Safety functions in Category 3 / PL d (EN ISO 13849-1).
About KUKA AG
One of the world's largest industrial robot manufacturers. Produces the AGILUS, KR, and LBR iisy cobot lines. Subsidiary of Midea Group since 2017.
https://www.kuka.com · Founded: 1898 · HQ: Augsburg, Germany
